LED light guide plate

Product features:

Powered by the charging head of a mobile phone or the USB port of a computer (5V), connect to the PCB adapter board using a Type-C data cable. Insert the LED light board into the PCB adapter board. Note: The mobile phone charging head, computer, and Type-C data cable need to be provided by the user.

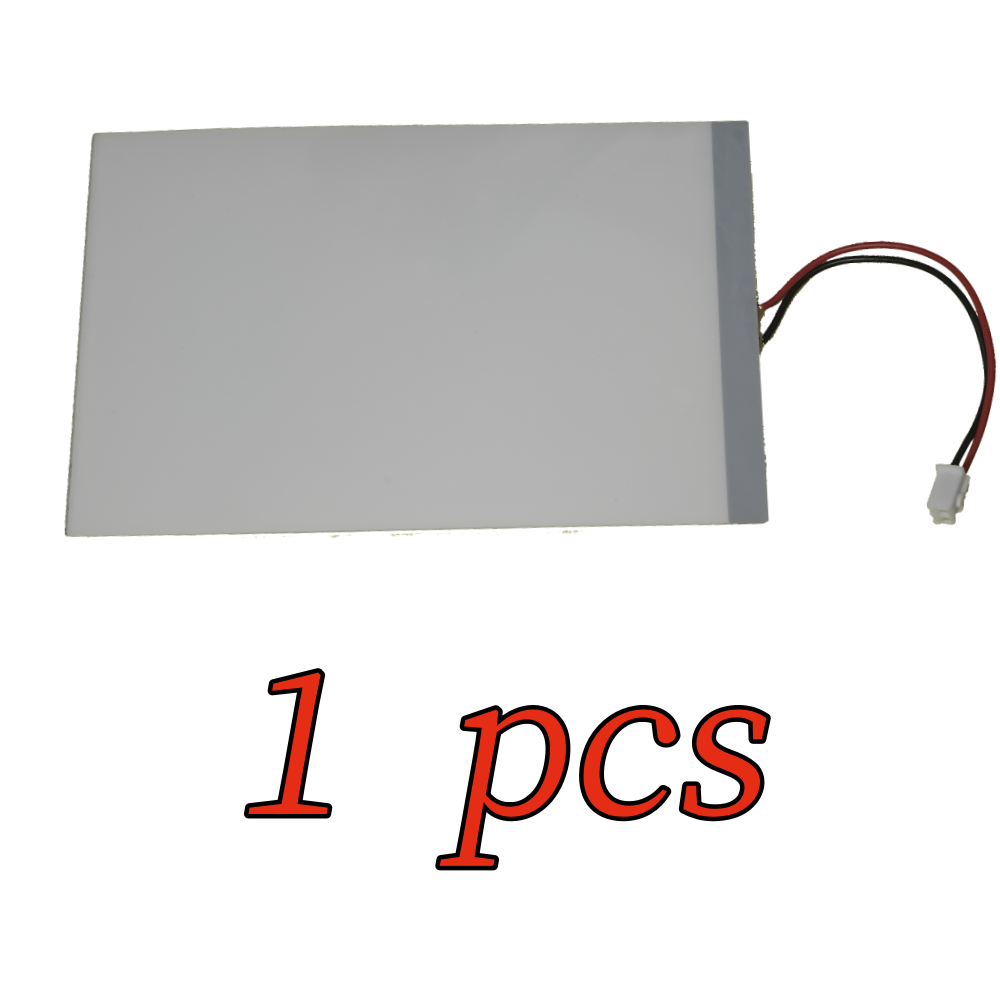

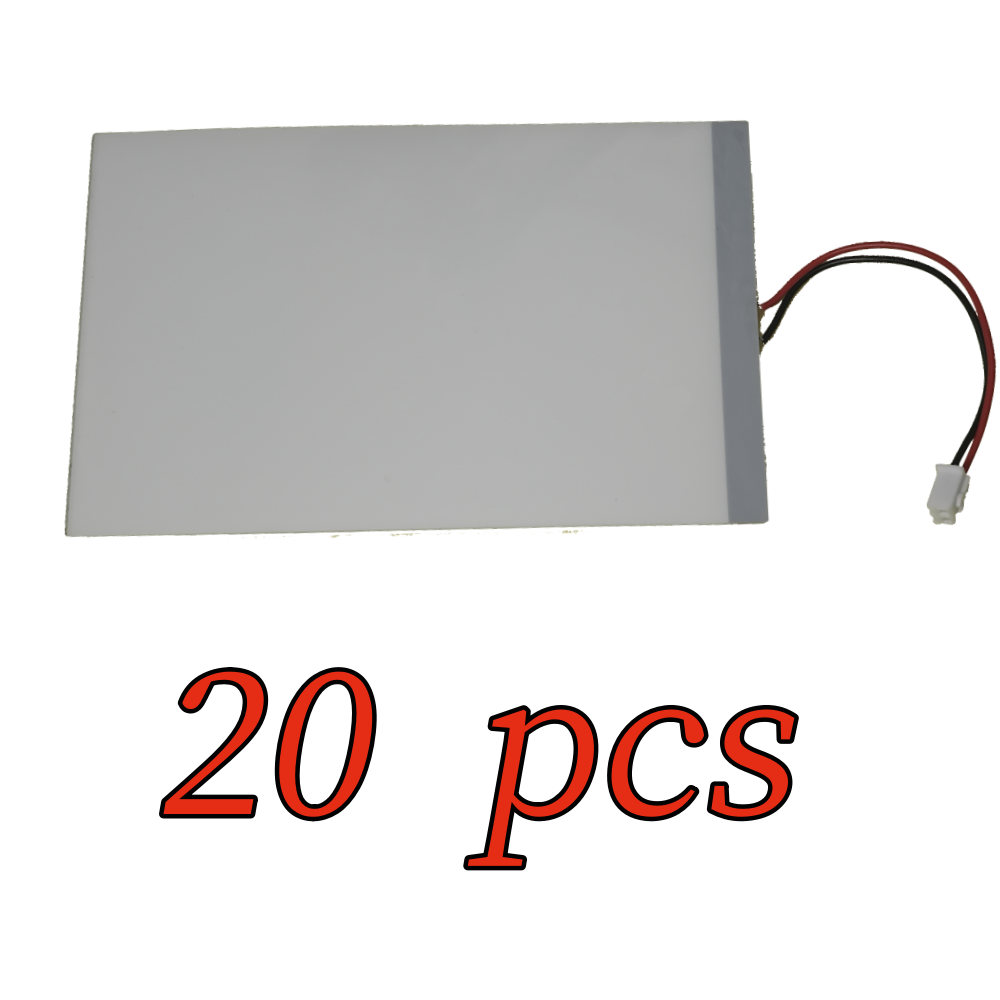

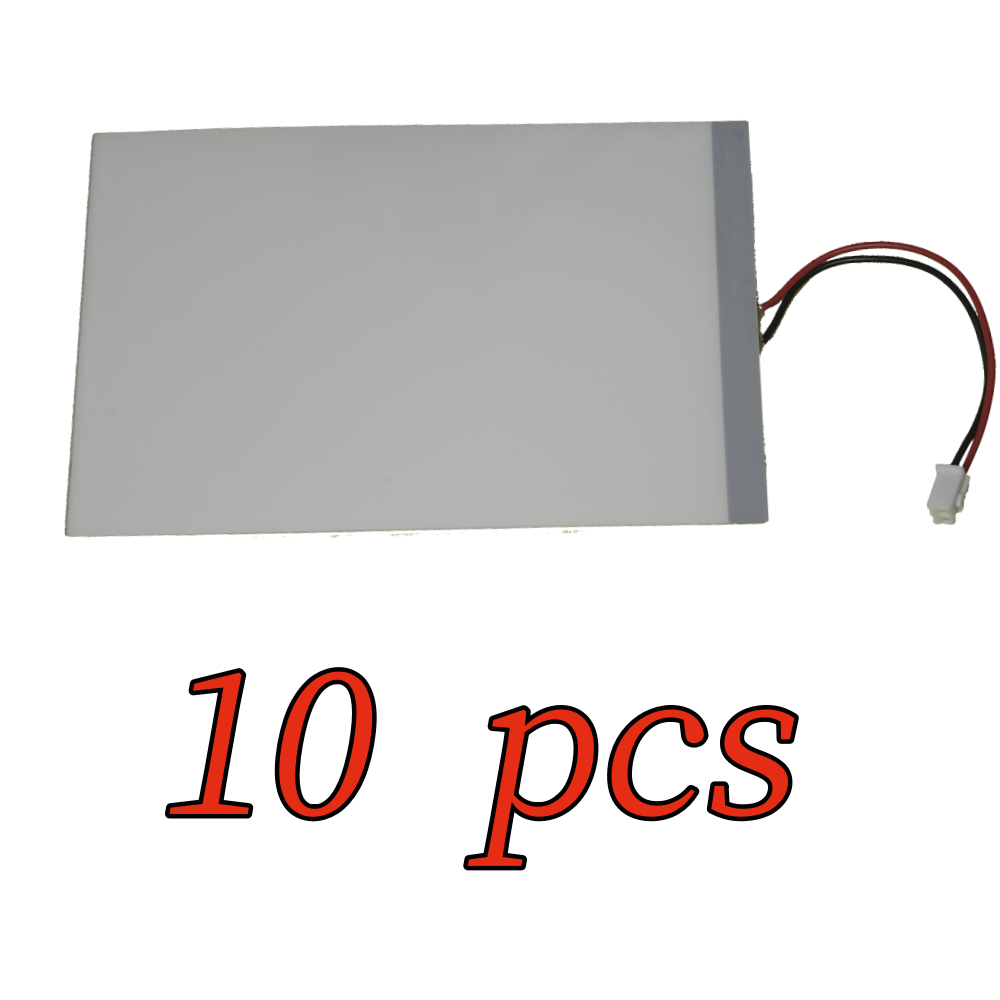

The dimensions of the LED light board are 121*76mm, with a lighting area of 113*76mm.

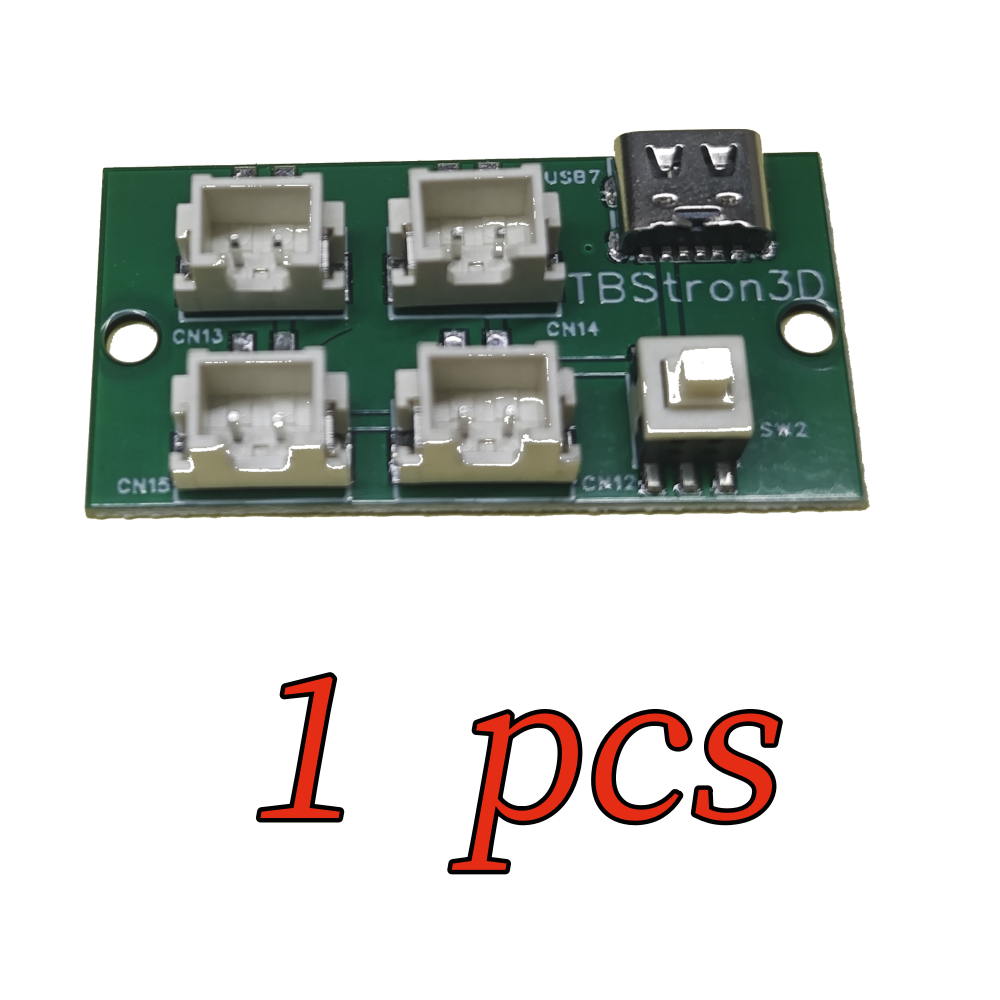

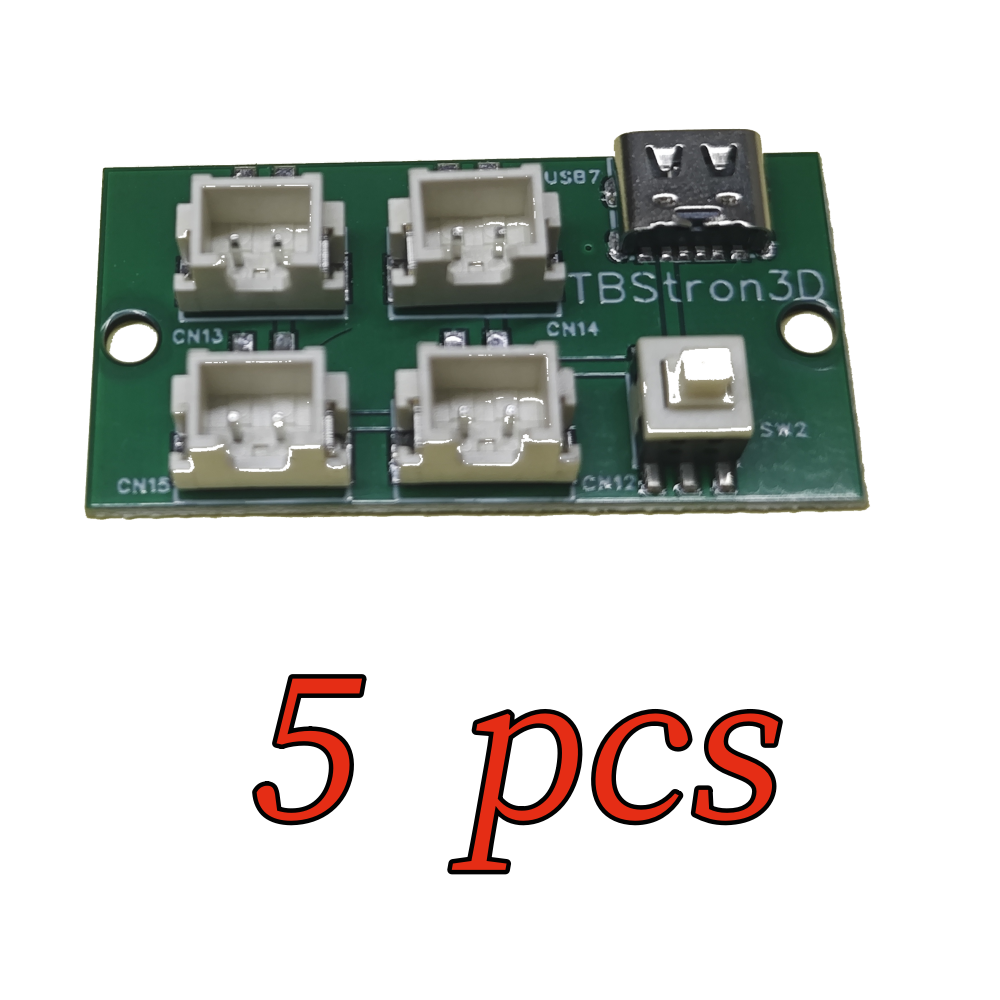

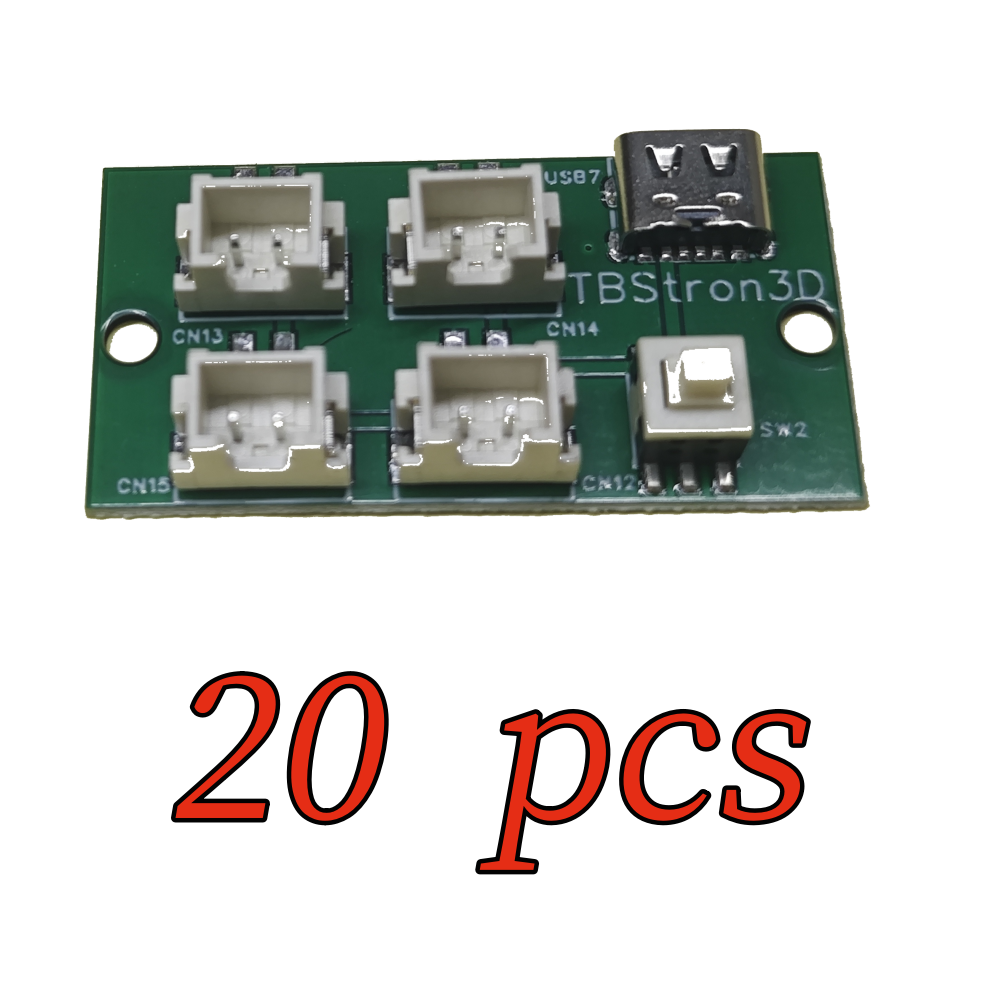

The PCB adapter board includes a Type-C connector, a switch, and four 2.54 2P pin headers. Since one PCB adapter board can connect up to four LED light guide plates, it is recommended that the number of PCB adapter boards purchased be less than or equal to the number of LED light guide plates.


Finished Effect Demonstration：

You can print out your favorite photos. The frame and support base will be uploaded to www.thingiverse.com soon.

Links to some finished product videos: https://youtube.com/shorts/8jSiML-ZOLk?feature=share
Links to some STL file downloads: https://strong3d.myshopify.com/products/led-light-guide-plate?


New Product Promotion:

To thank our loyal customers for their support, when old customers make their first purchase from this link, after placing an order, we will check their previous purchase records (if the name and email match the previous order, we will be able to find it). For customers with previous orders totaling over $80, we will include an extra LED light guide plate in the package. For example, customers with orders over $160 will receive an additional 2 LED light guide plates; those over $240 will receive an additional 3 LED light guide plates, and so on.
