Anycubic kobra 3 Upgrade Kit

Name: Anycubic kobra 3 Upgrade Kit
Brand: TBStron3D
Price: 2.0 USD
Availability: InStock

$2.00 USD

Sale Sold out

Size Y-axis motor mount for the new version of the Kobra 3 machine Y-axis upgrade bracket (without guide rails) Y-axis 林邓 guide rail kit Y-axis HIWIN guide rail kit Z-axis upgrade bracket (without guide rails) Z-axis 林邓 guide rail kit

Product variants

Quantity

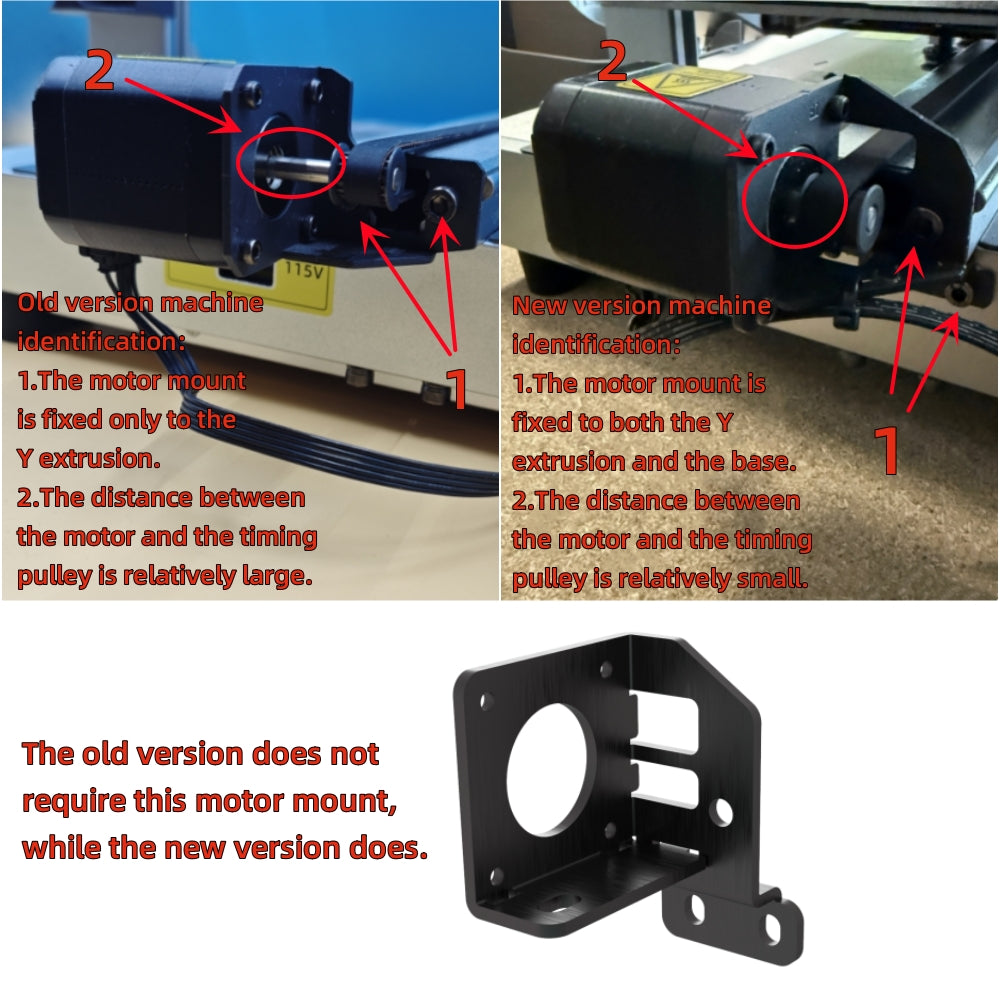

Since there are both new and old versions of the Kobra 3 machines on the market, we kindly ask customers to identify their machine version themselves.

The old version does not require the first product (Y-axis motor mount, $2), while the new version does need to purchase it separately. We will ship the order according to the items actually placed.

If you're unsure about your machine version, you can send us pictures of your machine, and we will help you confirm the model.

If you previously purchased the upgrade kit but your machine is the new version, feel free to contact us!

Product Features:

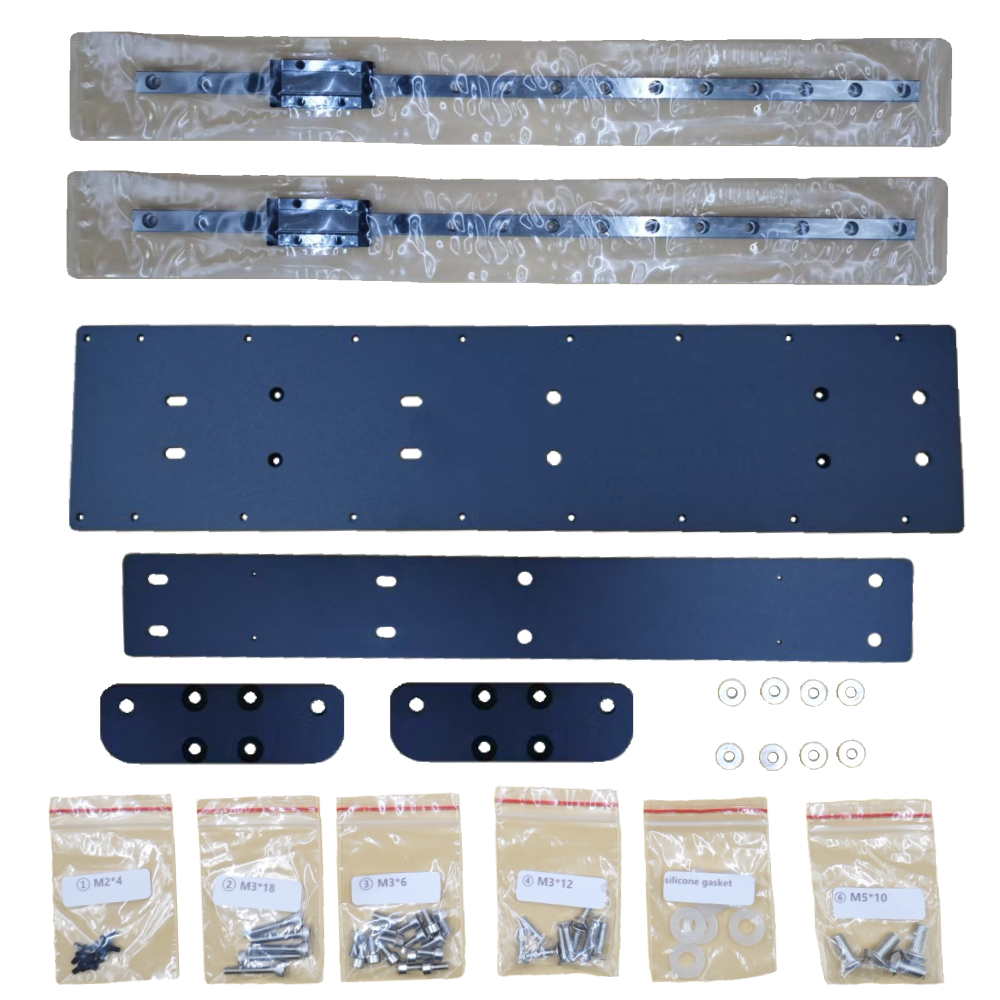

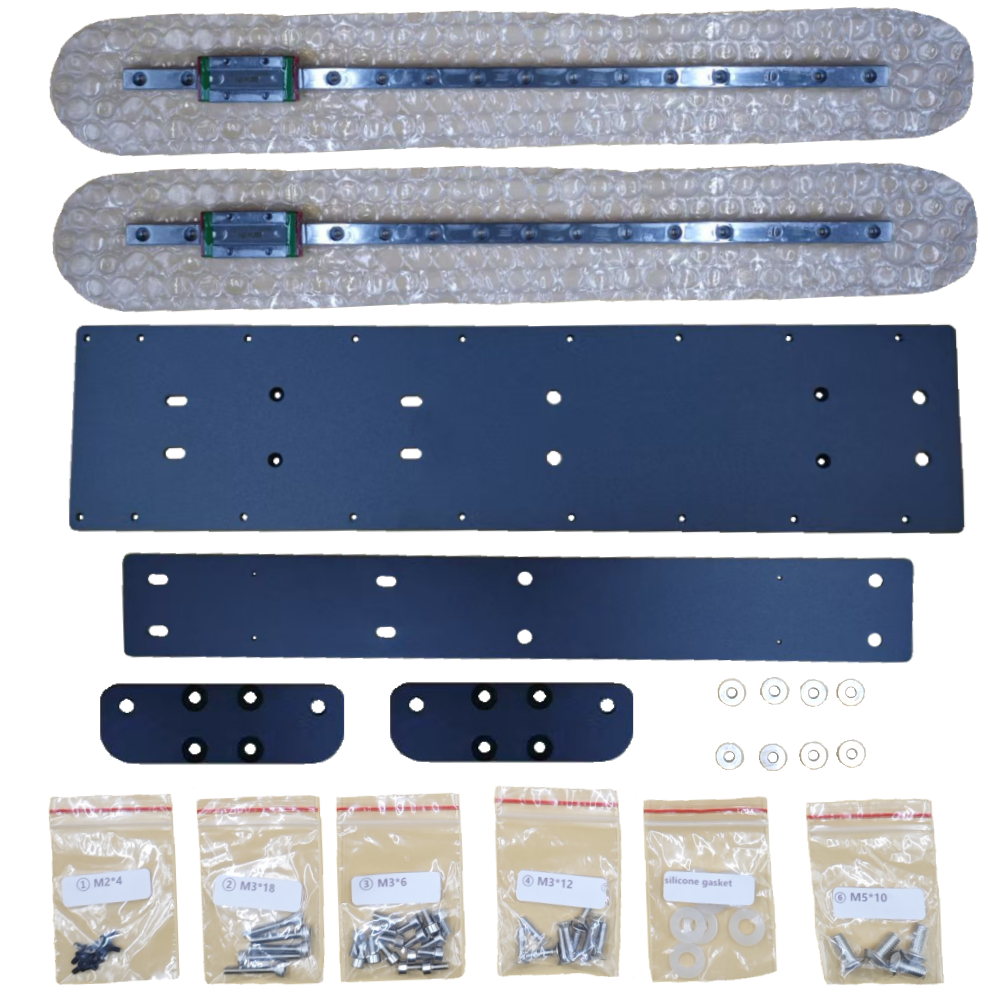

Y-Axis: Integrated metal mounting plate with a dual-rail design, replacing the original dual-shaft bearing transmission system.

The dual linear rail system provides greater stability, reduced operational resistance, and lower noise compared to the original design.

The linear rail model is MGN9H L315mm, and different brand options are available.

Drawback: This upgrade kit will reduce the Z-axis printing height by approximately 3mm. However, after upgrading the Z-axis linear rail kit in the future, the printing height will return to normal.

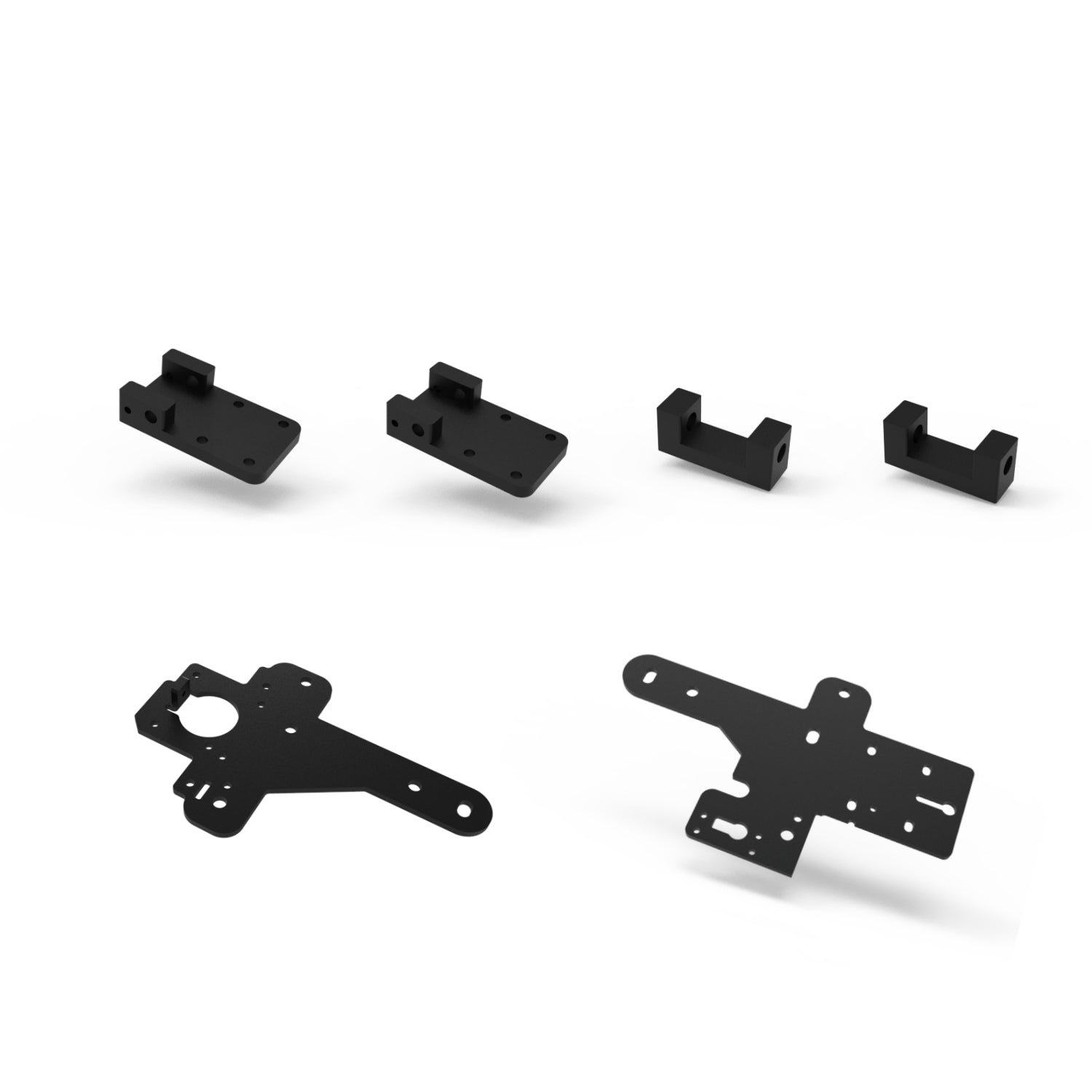

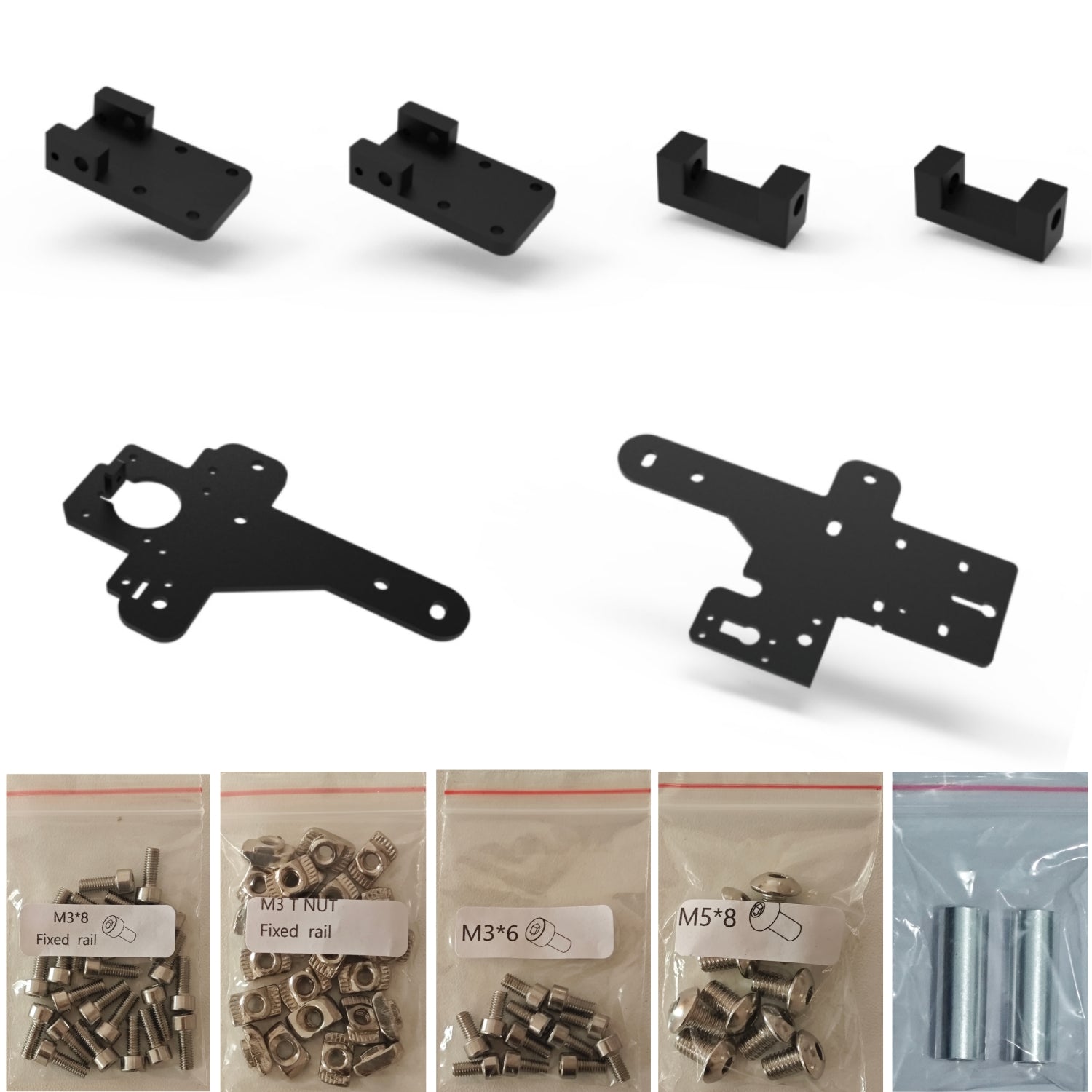

The functions of the Z-axis linear guide rail upgrade kit are:

To replace the 6 POM wheels on the Z-axis, preventing wheel wear and avoiding situations where some POM wheels spin idly, thereby improving the machine’s rigidity.

The printing area remains unaffected, and the reduced printing height caused by upgrading the Y-axis linear guide rail is restored to normal.

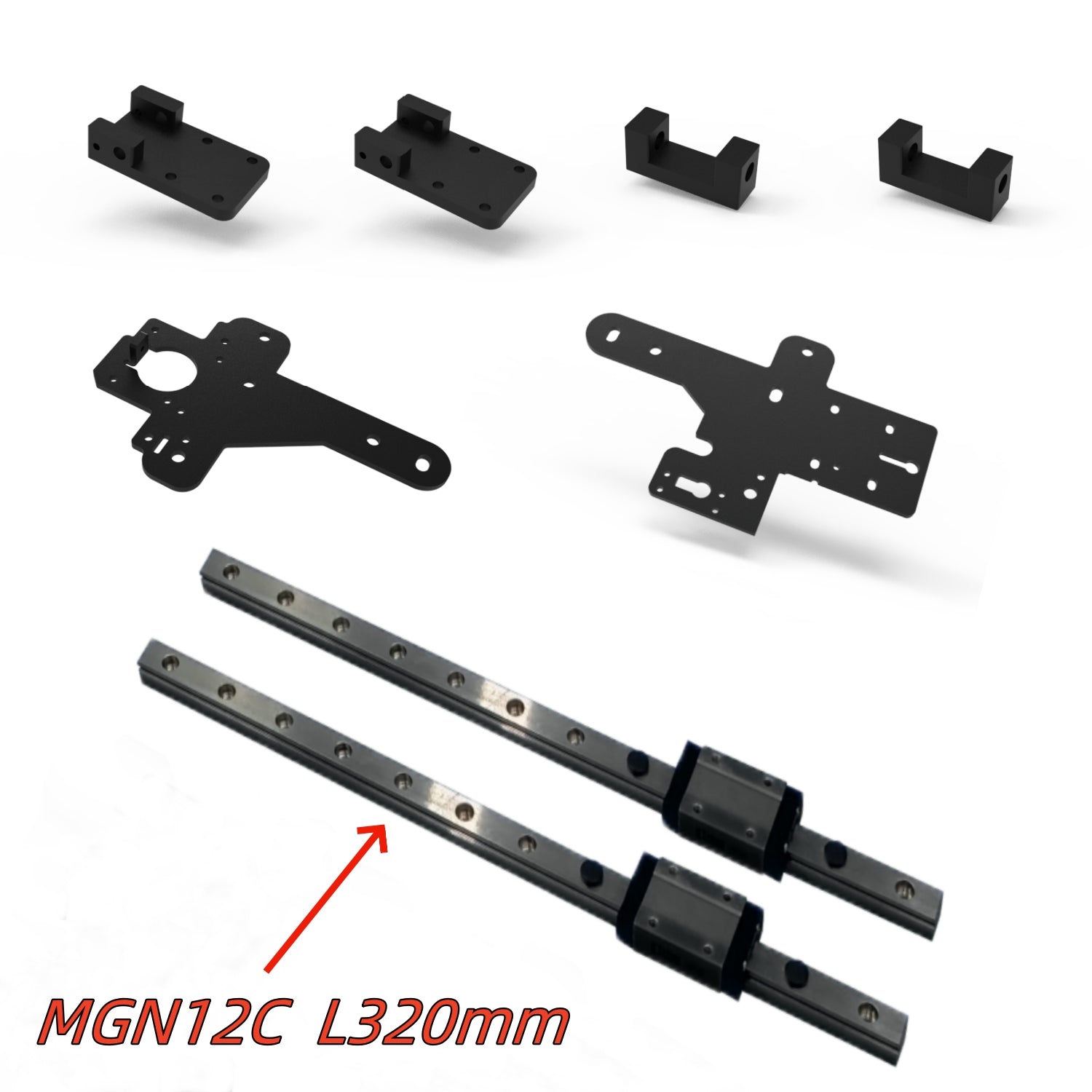

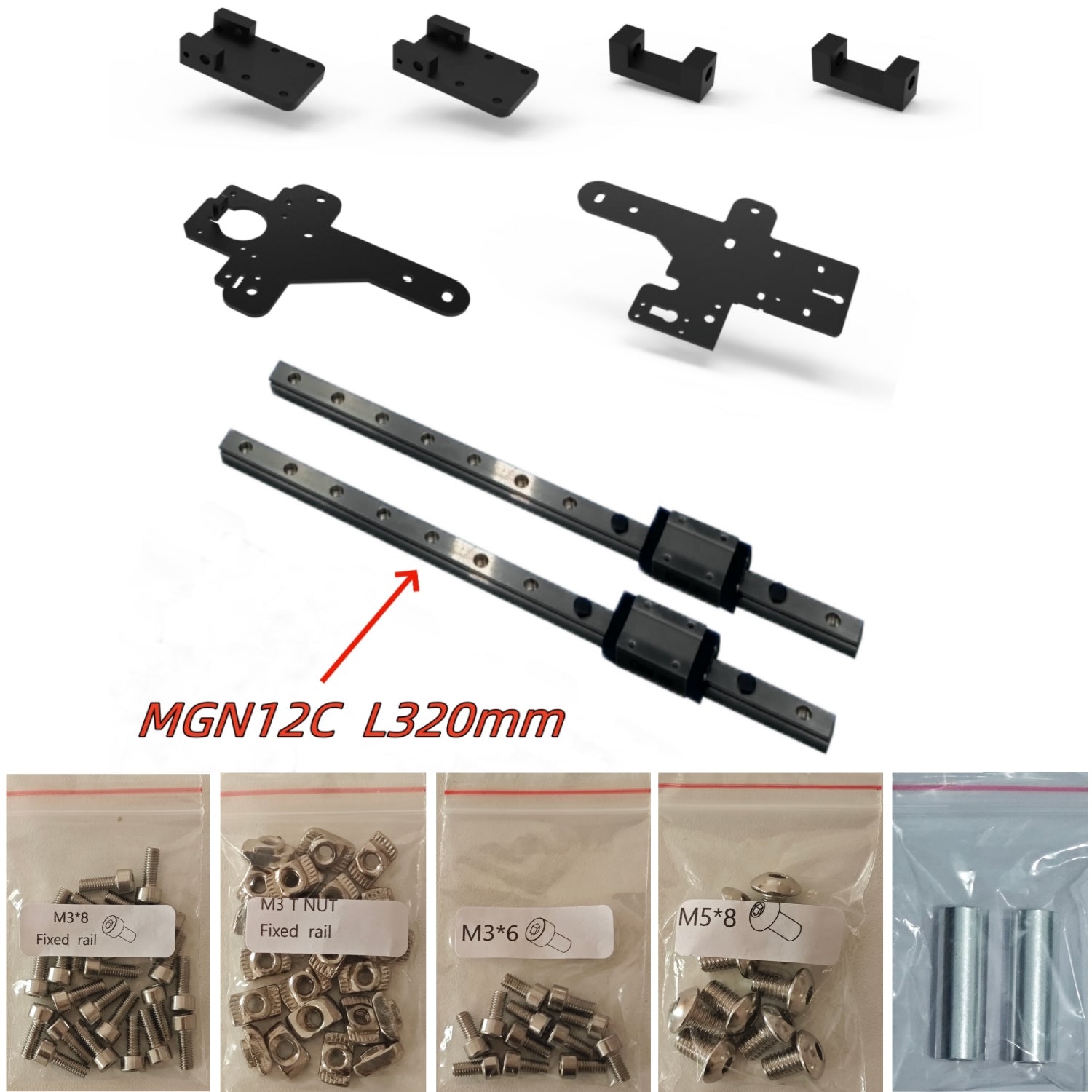

The linear rail model is MGN12C L320mm.

Scene Diagram:
