Creality CR-10 Smart Pro Upgrade Kit

Product features:

1.The installation base is made of aerospace-grade aluminum alloy with CNC processing, good flatness and verticality, high dimensional accuracy, lightweight product, and reduced motor load.

2.The Y-axis adopts a unique structure of double guide rails and double sliders, which makes the Y-axis more evenly and stably loaded. The linear guide rails and sliders are made of high-carbon chromium bearing steel and use electroplating rust prevention technology, with high hardness, wear resistance, smoothness, and good rust prevention ability.

The linear guide models :

X-axis, MGN 9H, length 380mm, with 1 MGN 9H slider; Quantity: 1 sets.

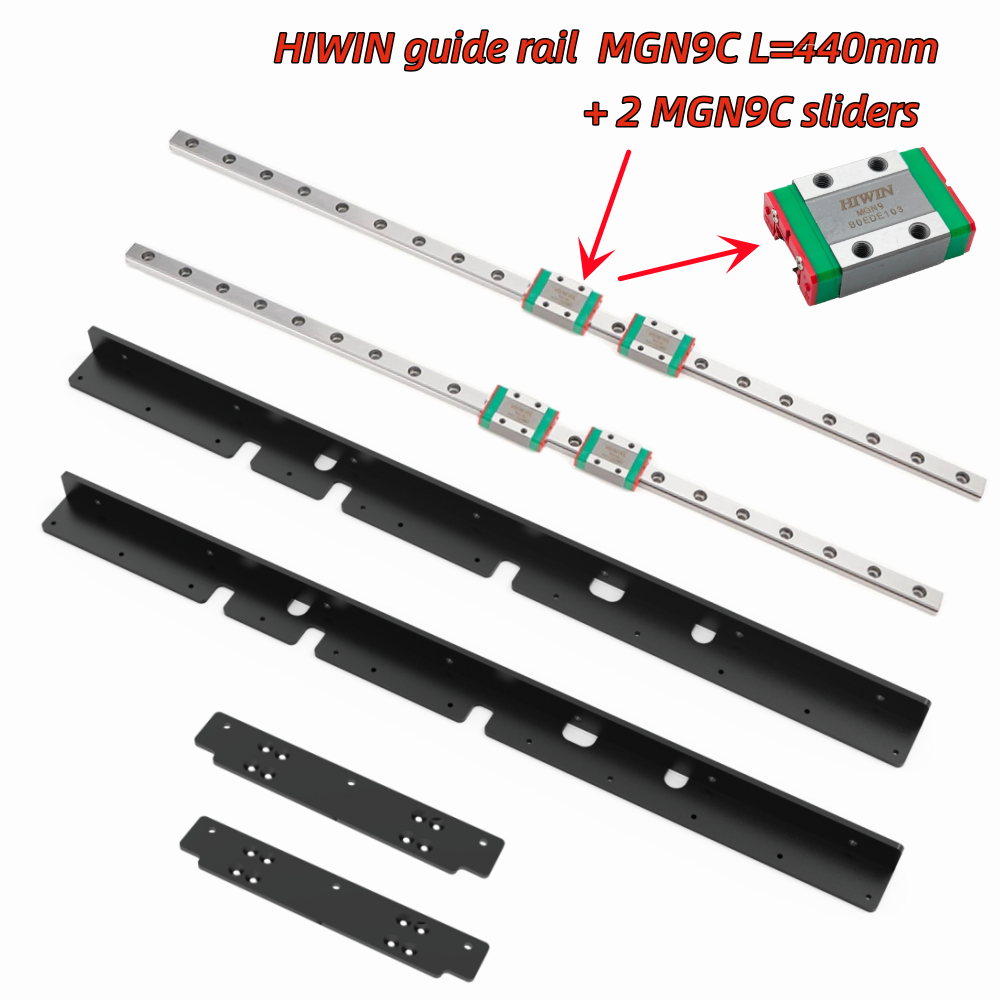

Y-axis, MGN 9C, length 440mm, with 2 MGN 9C sliders. Quantity: 2 sets.

3.Easy to install, retaining as many original machine parts as possible, and the machine's motion size (printable size) will not be lost after installation.

This product can effectively solve the following problems:

1. The problem of POM wheels causing hair and powder friction.

2. The need to adjust the POM wheel every once in a while, and not knowing how to adjust it correctly.

3. Provide a hardware foundation for stable and fast printing, such as if you need to use klipper.

Upgrade Linear Rail Scenario Diagram:


Precautions:

Do not let the slider slide out of the guide rail, as this may damage the slider. When assembling, do not completely tighten all the screws of the same part. Wait until all the screws of the part are partially screwed in before tightening them completely.

For the first-time use, it is recommended to apply some sewing machine oil on the rails.

After installation is complete, you need to level the platform first before starting the printing process.

Product Categories:

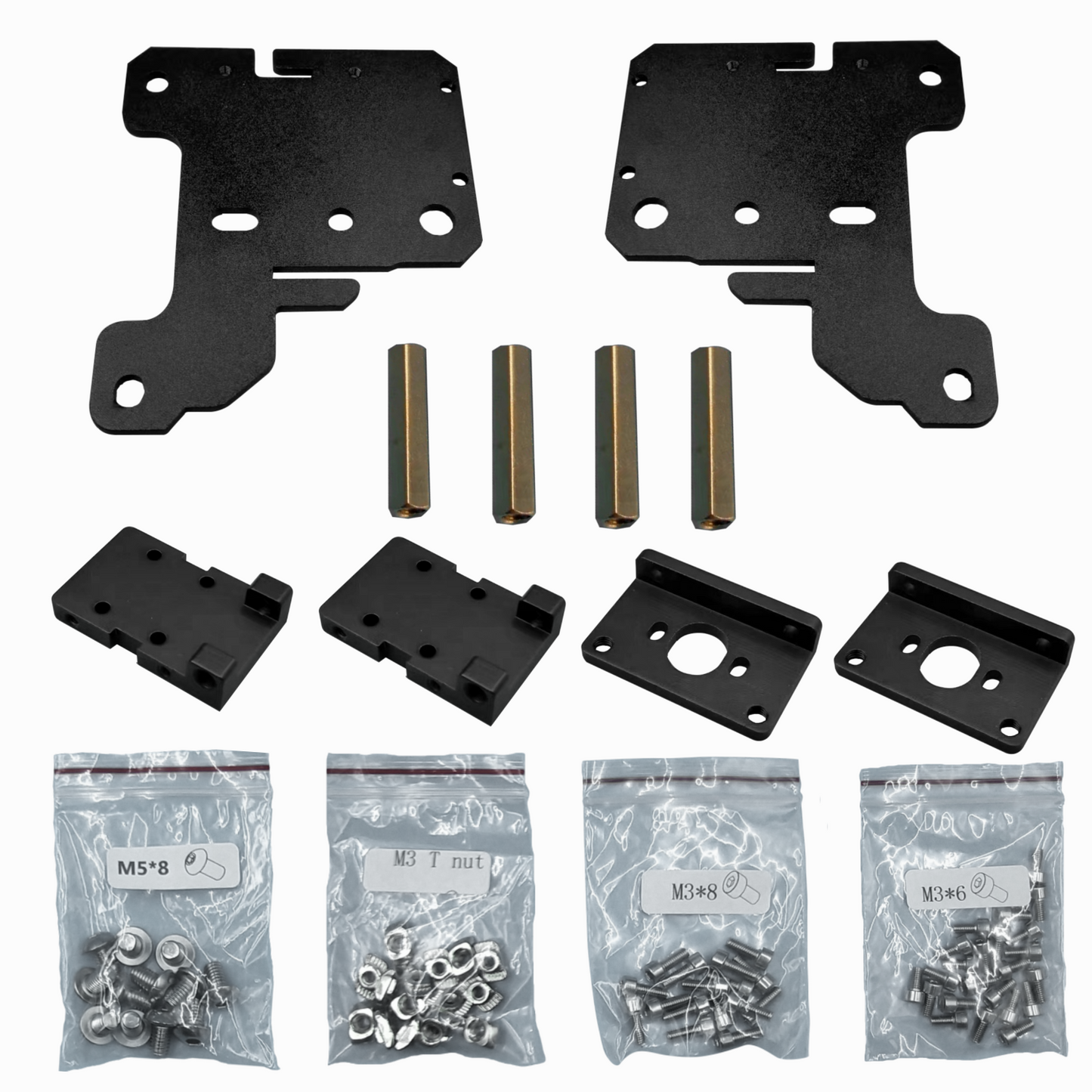

X bracket only（Without guide rails）: X-axis mounting brackets (2 types),  and screw packs.

X-axis upgrade guide rail kit : Including a set of  linear guides, X-axis mounting brackets (2 types),  and screw packs.

Y bracket only（Without guide rails）: Y-axis mounting brackets (2 types),  and screw packs.

Y-axis upgrade guide rail kit : Including 2 set of  linear guides, X-axis mounting brackets (2 types),  and screw packs.

The video link for the Y-axis linear rail upgrade is: https://youtu.be/h2rjP6SeRag
