SOVOL SV07 (not Plus) Upgrade kit

Product features:

1.The installation base is made of aerospace-grade aluminum alloy with CNC processing, good flatness and verticality, high dimensional accuracy, lightweight product, and reduced motor load.

2.The Y-axis adopts a unique structure of double guide rails and double sliders, which makes the Y-axis more evenly and stably loaded. The linear guide rails and sliders are made of high-carbon chromium bearing steel and use electroplating rust prevention technology, with high hardness, wear resistance, smoothness, and good rust prevention ability.

The linear guide models :
X-axis, MGN 9H, length 315mm, with 1 MGN 9H slider;

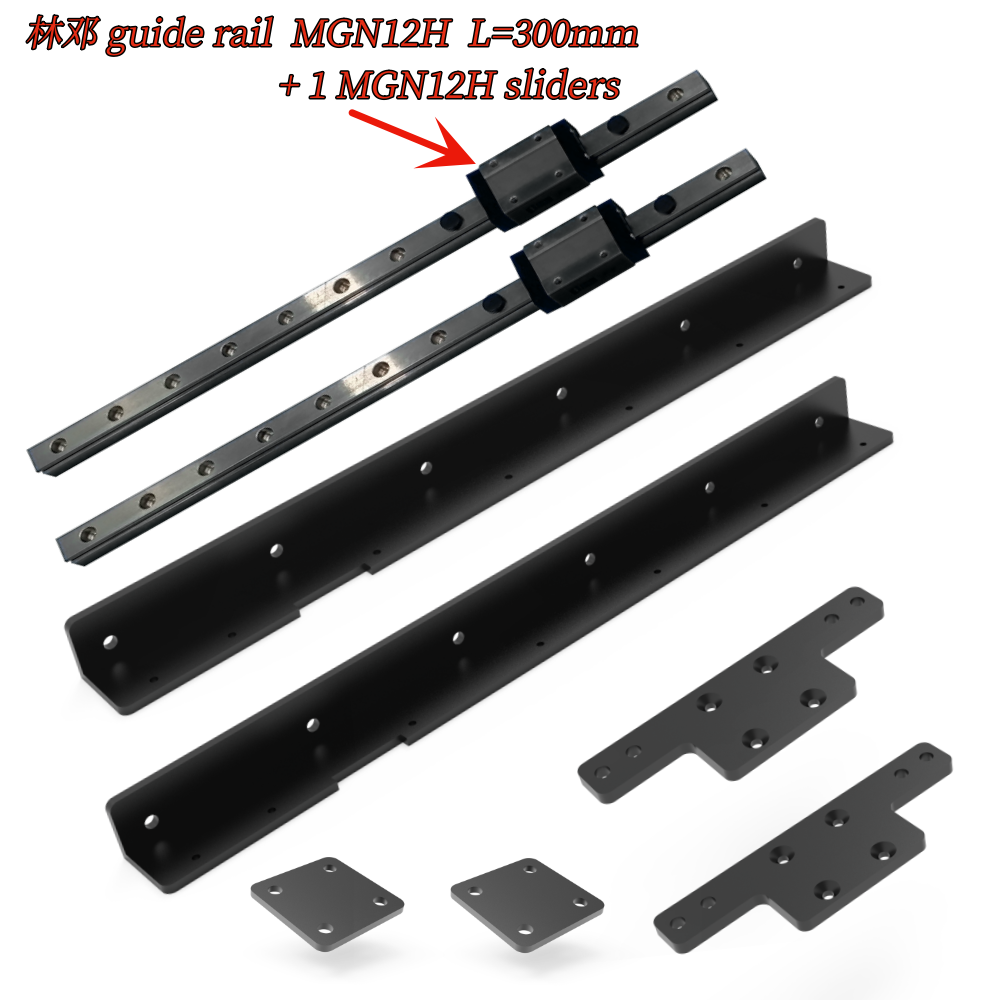

Y-axis, MGN 12H, length 300mm, with 2 MGN 12H sliders.

3.Easy to install, retaining as many original machine parts as possible, and the machine's motion size (printable size) will not be lost after installation.

This product can effectively solve the following problems:

1. The problem of POM wheels causing hair and powder friction.

2. The need to adjust the POM wheel every once in a while, and not knowing how to adjust it correctly.

3. Provide a hardware foundation for stable and fast printing, such as if you need to use klipper.

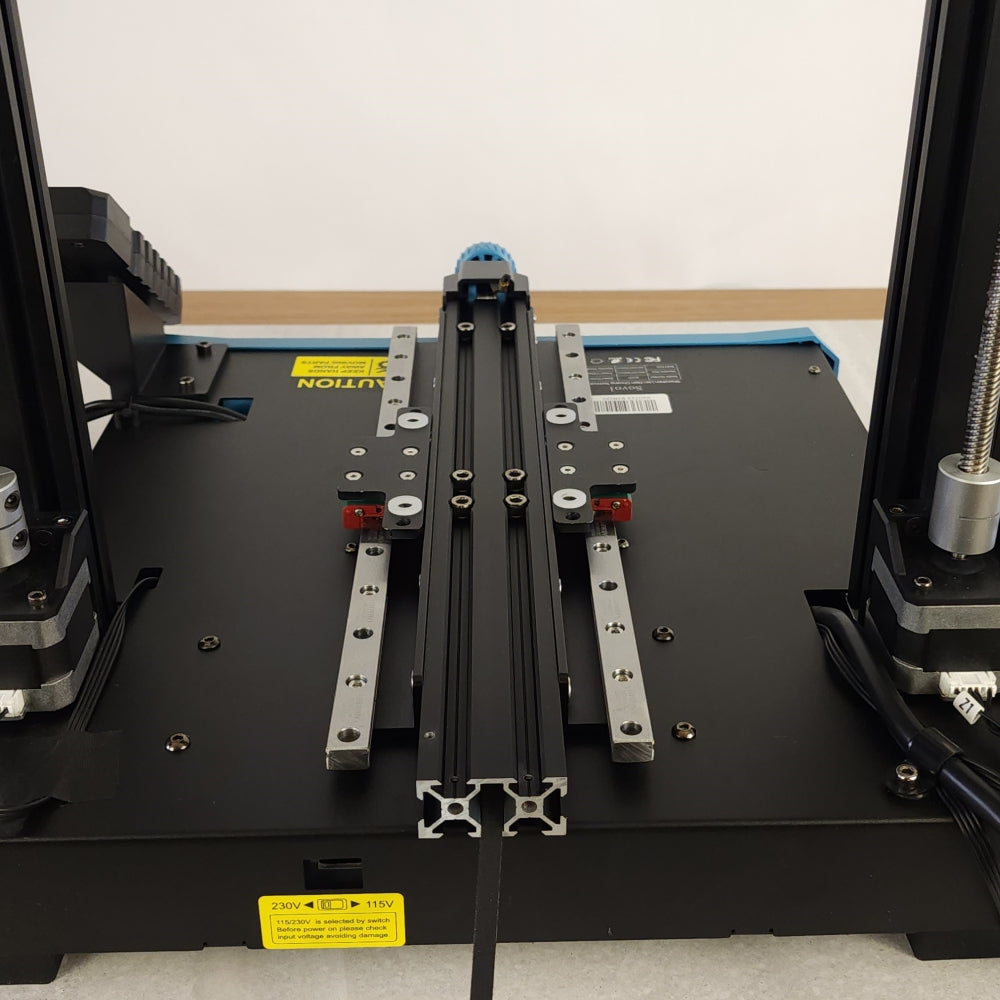

Installation Scene Diagram:

Installation instructions.

X-axis video installation: https://youtu.be/05yGhhUdozI?si=q4NqaA77nJUgT3rV

Y-axis video installation:  https://www.youtube.com/watch?v=9ezVllKc4Eo
