X Y Linear Rails for Creality Ender 3、Ender 3 Pro、Ender 3 V2 3D printer

Product features:

1.The installation base is made of aerospace-grade aluminum alloy with CNC processing, good flatness and verticality, high dimensional accuracy, lightweight product, and reduced motor load.

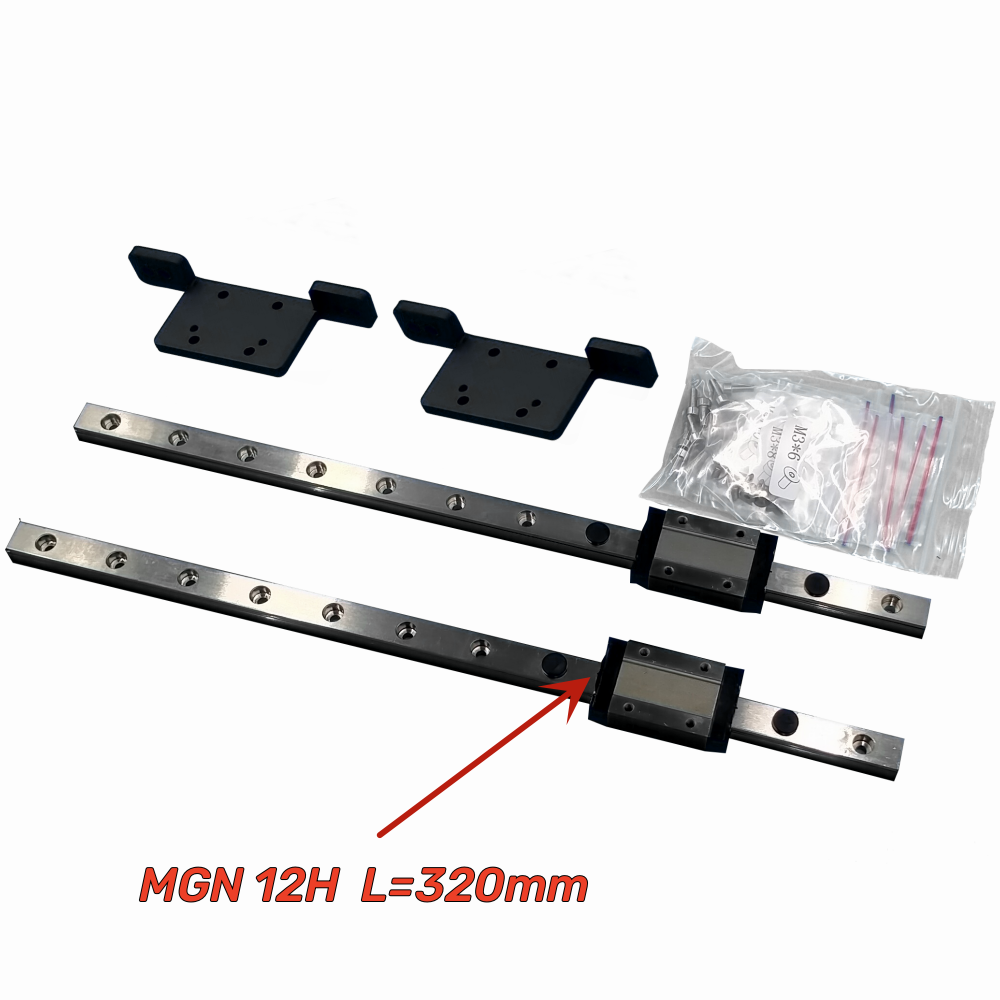

2.The Y-axis adopts a unique structure of double guide rails , which makes the Y-axis more evenly and stably loaded. The linear guide rails and sliders are made of high-carbon chromium bearing steel and use electroplating rust prevention technology, with high hardness, wear resistance, smoothness, and good rust prevention ability.The specifications of the X linear guide are MGN9 length 315mm plus MGN9H slider.  The specifications of the Y linear guide are MGN12 length 300mm plus MGN12H slider.

3.Easy to install, retaining as many original machine parts as possible, and the machine's motion size (printable size) will not be lost after installation.

This product can effectively solve the following problems:

1. The problem of POM wheels causing hair and powder friction.



2. The need to adjust the POM wheel every once in a while, and not knowing how to adjust it correctly.



3. Provide a hardware foundation for stable and fast printing, such as if you need to use klipper.

Product images.


Precautions:

Do not let the slider slide out of the guide rail, as this may damage the slider. When assembling, do not completely tighten all the screws of the same part. Wait until all the screws of the part are partially screwed in before tightening them completely.
For the first-time use, it is recommended to apply some sewing machine oil on the rails.
After installation is complete, you need to level the platform first before starting the printing process.

Product Categories:

X Linear Rail kit: Includes linear rail, X-axis mounting bracket, screw package.
X bracket only: Includes X-axis mounting bracket, screw package. You will need to purchase the specified size of linear rail separately.
Y Linear Rail kit: Includes linear rail, Y-axis mounting bracket, screw package.
Y bracket only: Includes Y-axis mounting bracket, screw package. You will need to purchase the specified size of linear rail separately.

Y-axis limit switch mount download link: https://www.thingiverse.com/thing:6258683

Installation instructions.

X : https://www.youtube.com/watch?v=auClAfd8kgs                                                          Y : https://www.youtube.com/watch?v=s8hbn8WyA7s
